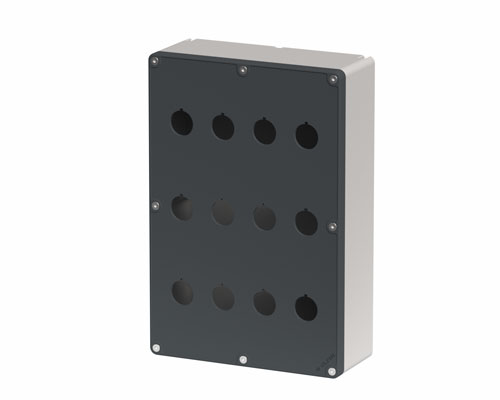

080TU1827-7P12 - Drucktastergehäuse in PA + Glasfaser 180x267x74, 12 Bohrungen d22, UL

Download

certifications Zertifizierungen

Datenblatt

Approvals
CE, UL, CSA, EAC
Compliance with standards
IEC-EN62208, UL508, CSA C22.2 No.14-13
Operating temperatures
-35° ÷ +80°C
Protection against impact
IK08 (IEC-EN62262)
Protection degree
IP66-IP67-IP69 -TYPE 4,4X (IEC-EN60529 - NEMA 250)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Stainless steel AISI 304 - M4 thread
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2 Nm (7.1 ÷ 10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
960°(IEC-EN60695-2-12)
Fitted for outdoor application
yes
Combustion behaviour
5VA (UL94)
Warranty period
18 months

Technische Zeichnungen

Drucktastergehäuse in PA + Glasfaser 180x267x74, 12 Bohrungen d22, UL

080TU1827-7P12

Spezifikationen

Artikel-Nr.
080TU1827-7P12
Beschreibung
Drucktastergehäuse in PA + Glasfaser 180x267x74, 12 Bohrungen d22, UL
Farbe
Grau RAL7016 / Grau RAL7035
Preisliste €
Registriert, um den Preis zu sehen
Verpackung - pz
1
Gewicht - gr
564,00
Verfügbarkeit
In 5 Tagen verfügbar
Zollsatz
85381000
GTIN
8052878077792
