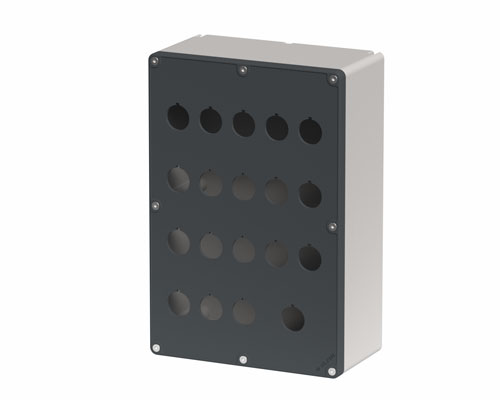

080TU1827-9P19C - Drucktastergehäuse in PA + Glasfaser 180x267x94, 19 Bohrungen d22, UL

Download

certifications Zertifizierungen

Datenblatt

Approvals
CE, UL, CSA
Compliance with standards
IEC-EN62208, UL50, UL50E
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Stainless steel AISI 304 - M4 thread
Enclosure thickness
4mm
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
5VA (UL50 - UL746C)
Combustion behaviour
HB (UL94)
Combustion behaviour
960°(IEC-EN60695-2-11)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months

Technische Zeichnungen

Drucktastergehäuse in PA + Glasfaser 180x267x94, 19 Bohrungen d22, UL

080TU1827-9P19C

Spezifikationen

Artikel-Nr.
080TU1827-9P19C
Beschreibung
Drucktastergehäuse in PA + Glasfaser 180x267x94, 19 Bohrungen d22, UL
Farbe
Grigio RAL7016 / Grigio RAL7035
Preisliste €
Registriert, um den Preis zu sehen
Verpackung - pz
1
Gewicht - gr
564,00
Verfügbarkeit
Producibile in 5 giorni
Zollsatz
85381000
GTIN
8052878077358
