Download
Datenblatt
Approvals
CE
Compliance with standards
IEC-EN62208
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Brass OT58 - M4 thread
Enclosure thickness
4mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
HB (UL94)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months

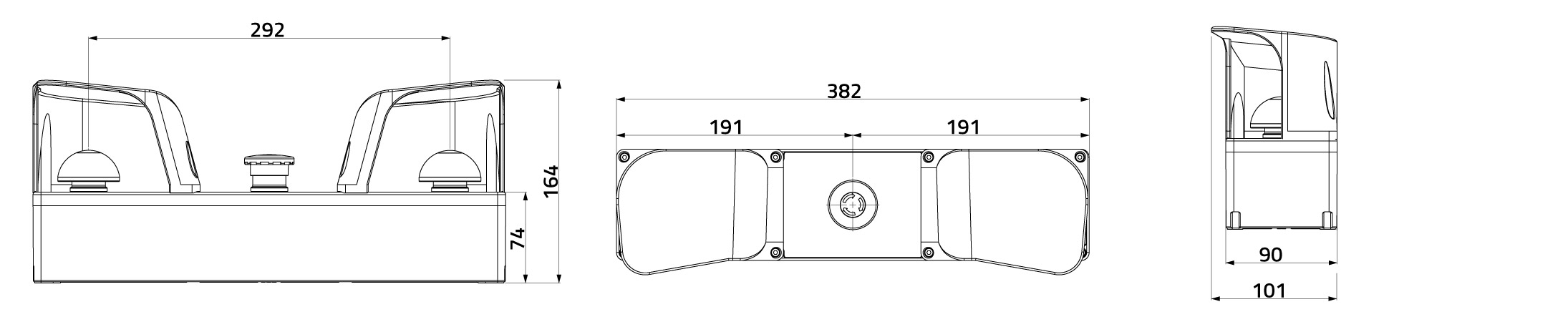

Technische Zeichnungen
Geschütztes Zweihandpult Techno 90, orange, Thermoplast
060PT2MAA
Spezifikationen
Artikel-Nr.
060PT2MAA
Beschreibung
Geschütztes Zweihandpult Techno 90, orange, Thermoplast
Farbe
Grigio RAL7016
Preisliste €
Verpackung - pz
1
Gewicht - gr
1195,00
Verfügbarkeit
Producibile in 5 giorni
Zollsatz
85371098
GTIN
8052878078522
