Download
hoja de datos
Approvals
CE, UL, CSA
Compliance with standards
IEC-EN62208, UL50, UL50E
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Stainless steel AISI 304 - M4 thread
Enclosure thickness
4mm
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
5VA (UL50 - UL746C)
Combustion behaviour
HB (UL94)
Combustion behaviour
960°(IEC-EN60695-2-11)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months
dibujos técnicos

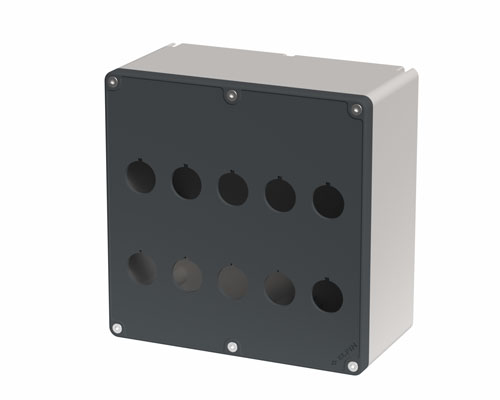

Caja pulsadora in PA + fibra de vidrio 180x180x94, 10 orificios d22, UL
080TU1818-9P10
Especificaciones
Código
080TU1818-9P10
Descripción
Caja pulsadora in PA + fibra de vidrio 180x180x94, 10 orificios d22, UL
Color
Grigio RAL7016 / Grigio RAL7035
Lista de precios €
Embalaje - pz
1
Peso - gr
564,00
Disponibilidad
Producibile in 5 giorni
Aduanas
85381000
GTIN
8052878077068
