Approvals
CE, UL, CSA
Compliance with standards
IEC-EN62208, UL508, CSA C22.2 No.14-13
Operating temperatures
-35° ÷ +80°C
Protection against impact
IK09 (IEC-EN62262)
Protection degree
IP66-IP67-IP69 -TYPE 4,4X (IEC-EN60529 - NEMA 250)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Combustion behaviour
5VA (UL50 - UL746C)
Combustion behaviour
960°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months

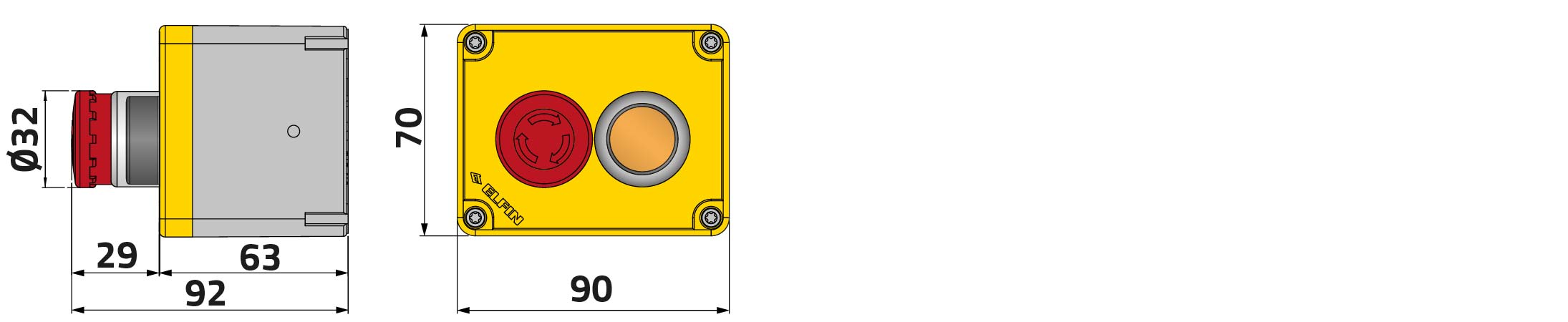

dibujos técnicos

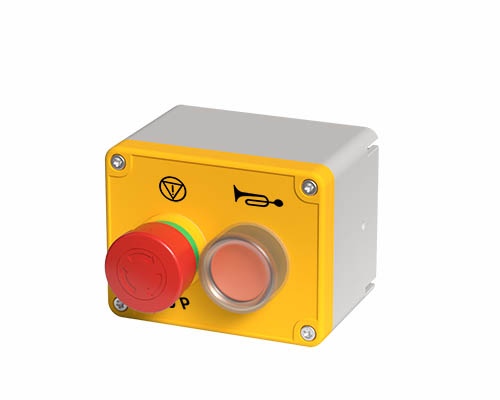

Caja pulsadora in PA + fibra de vidrio 70x90x63 con pulsador d'emergencia D40 + pulsador con guarda, UL
080TU0709-6PE
Especificaciones
Código
080TU0709-6PE
Descripción
Caja pulsadora in PA + fibra de vidrio 70x90x63 con pulsador d'emergencia D40 + pulsador con guarda, UL
Color
Lista de precios €
Embalaje - pz
1
Peso - gr
200,00
Disponibilidad
Producibile in 5 giorni
Aduanas
85365080
GTIN
