080T0709-6G - Caja pulsadora in PA + fibra de vidrio 70x90x63, sin orificios, amarillo

Download

certifications certificaciones

hoja de datos

Approvals
CE
Compliance with standards
IEC-EN62208
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
HB (UL94)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months

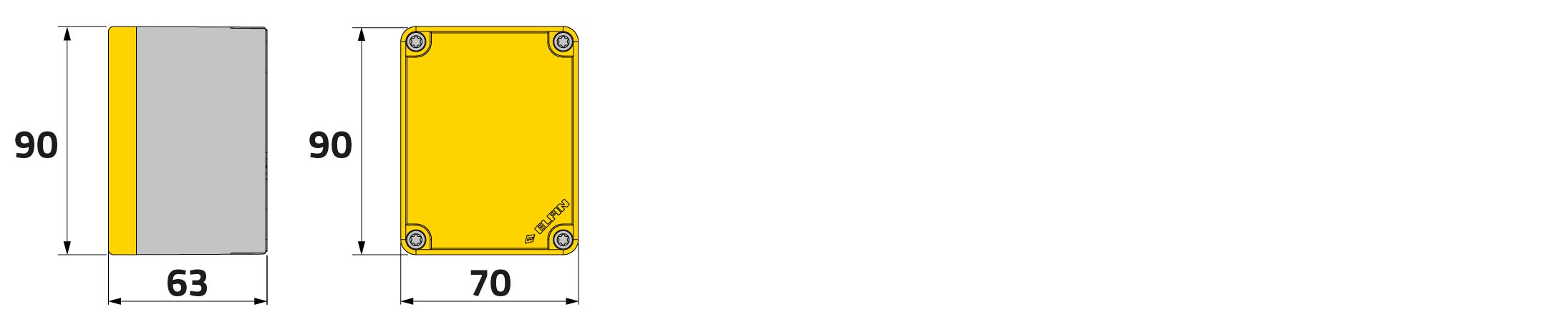

dibujos técnicos

Caja pulsadora in PA + fibra de vidrio 70x90x63, sin orificios, amarillo

080T0709-6G

Especificaciones

Código
080T0709-6G
Descripción
Caja pulsadora in PA + fibra de vidrio 70x90x63, sin orificios, amarillo
Color
Giallo RAL1003 / Grigio RAL7035
Lista de precios €
Registrado para ver el precio
Embalaje - pz
1
Peso - gr
132,00
Disponibilidad
Producibile in 5 giorni
Aduanas
85381000
GTIN
8052878074135
