080T0927-7T - Caja pulsadora in PA + fibra de vidrio 90x267x74, sin orificios, transparente

Descarga

certifications certificaciones
certifications Tamaño 2D

hoja de datos

Approvals
CE, EAC
Compliance with standards
IEC-EN62208
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK08 (IEC-EN62262)
Lid material
PC Polycarbonate
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Brass OT58 - M4 thread
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2 Nm (7.1 ÷ 10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Heavy metal-free
yes
PVC-free
yes
Silicon-free
yes
Combustion behaviour
HB (UL94)
Combustion behaviour
650°(IEC-EN60695-2-12)
Fitted for outdoor application
yes
Warranty period
18 months

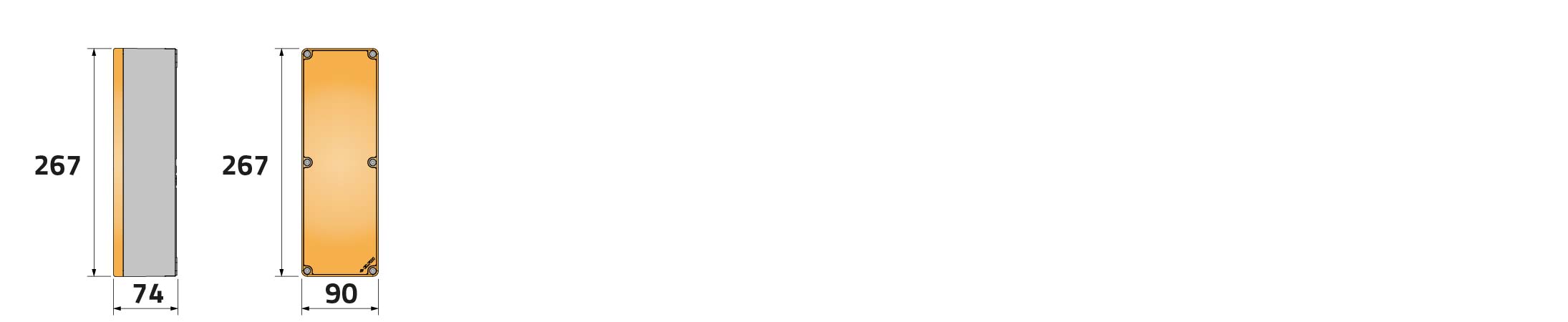

dibujos técnicos

Caja pulsadora in PA + fibra de vidrio 90x267x74, sin orificios, transparente

080T0927-7T

Especificaciones

Código
080T0927-7T
Descripción
Caja pulsadora in PA + fibra de vidrio 90x267x74, sin orificios, transparente
Color
Transparente / Gris RAL7035
Lista de precios €
Registrado para ver el precio
Embalaje - pz
1
Peso - gr
530,00
Disponibilidad
Disponible en 5 días
Aduanas
85381000
GTIN
8052878074838
