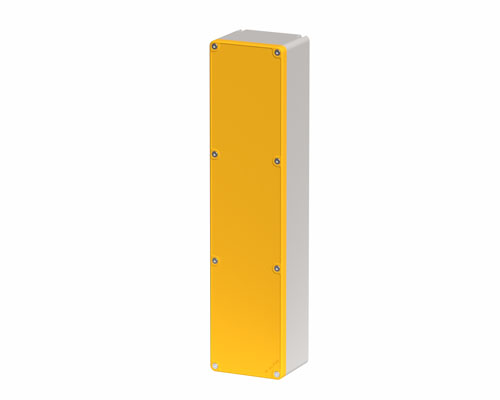

080TU0938-7G - Caja pulsadora in PA + fibra de vidrio 90x382x74, sin orificios, amarillo, UL

Download

certifications certificaciones

hoja de datos

Approvals
CE, UL, CSA
Compliance with standards
IEC-EN62208, UL50, UL50E
Operating temperatures
-35° ÷ +80°C
Protection degree
IP67 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Screw type
HEX 3 slotted head - M4 thread
Threaded bushing material
Stainless steel AISI 304 - M4 thread
Enclosure thickness
4mm
Enclosure thickness
3,5mm
Tightening torque
0.8 ÷ 1.2Nm (7.1÷10.6 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Halogen-free
yes
Combustion behaviour
5VA (UL50 - UL746C)
Combustion behaviour
HB (UL94)
Combustion behaviour
960°(IEC-EN60695-2-11)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Warranty period
18 months

dibujos técnicos

Caja pulsadora in PA + fibra de vidrio 90x382x74, sin orificios, amarillo, UL

080TU0938-7G

Especificaciones

Código
080TU0938-7G
Descripción
Caja pulsadora in PA + fibra de vidrio 90x382x74, sin orificios, amarillo, UL
Color
Giallo RAL1003 / Grigio RAL7035
Lista de precios €
Registrado para ver el precio
Embalaje - pz
1
Peso - gr
564,00
Disponibilidad
Producibile in 5 giorni
Aduanas
85381000
GTIN
8052878074913
