Approvals
CE
Compliance with standards
IEC-ENC60947-1, IEC-EN60947-5-1
Compliance with standards
IEC-EN60204-1,UNI EN ISO 13849-1,UNI EN ISO 13851
Operating temperatures
-35° ÷ +80°C
Protection degree
IP66 - IP69 (IEC-EN60529)
Protection against impact
IK09 (IEC-EN62262)
Enclosure material
PA Polyamide - glass fiber reinforced
Gasket material
TPE thermoplastic elastomer
Screw material
Stainless steel AISI 304
Screw type
Torx T15 slotted head type
Enclosure thickness
3,5mm
Tightening torque
0.6 ÷ 0.8Nm (5.3÷7.1 Lb-in)
Protection against electric shock
Class II (IEC-EN61140)
Combustion behaviour
HB (UL94)
Combustion behaviour
650°(IEC-EN60695-2-11)
Fitted for outdoor application
yes
Pushbutton characteristics
See items from family 020 / CMD&SIGN SM2 Ø22
Warranty period
18 months

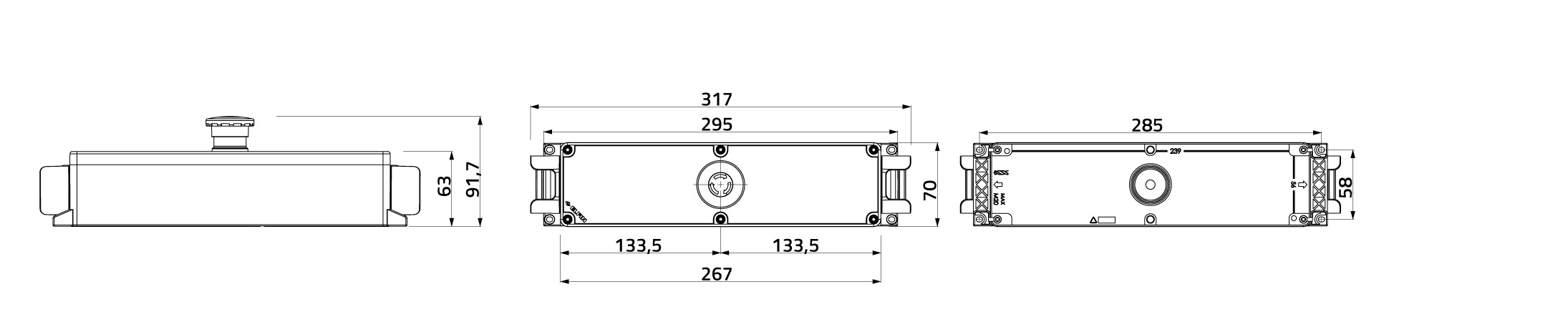

dibujos técnicos
Pulsador bimanual Techno 70, gris, termoplástico
060CT2MAGR
Especificaciones
Código
060CT2MAGR
Descripción
Pulsador bimanual Techno 70, gris, termoplástico
Color
Gris RAL7016
Lista de precios €
Embalaje - pz
1
Peso - gr
550,00
Disponibilidad
Disponible en 5 días
Aduanas
85371098
GTIN
8052878078515
